Question

 How do I configure my printer

Answer/ Where To Find It

Step 1: Connect your printer to power supply

Step 2: Connect your printer USB cable to the computer

Step 3: Install your printer software

Step 4: Go to window and click on This PC

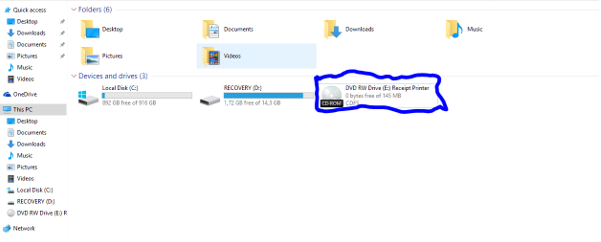

Step 5: Click on the printer software and select Application DVD RW Drive (E:) Receipt Printer

Step 6: Follow the instructions given by the printer software

Step 7: Do a test print of the printer to ensure there is a proper configuration

Step 8: Click on Finished or Done

After Configurations

 Step 1: Do a restart of your system

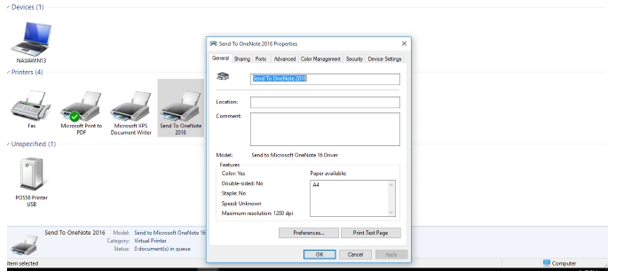

Step 2: Go to window and click on Devices and Printers

Step 3: Right click on the downloaded printer

Step 4: Click on Printer properties

Step 5: Click on port and thick virtual printer port for USB 001 but if you are already in 001 then you can make use of 002, 003, 004 etc.…

Step 6: Click on Apply and Ok

Step 7: Click on General and test print page to ensure the printer is printing

Step 8: Click ok

Paper Settings

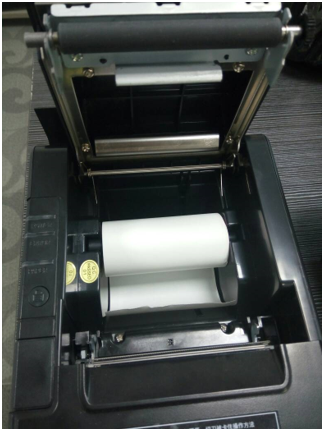

For paper settings please ensure that the paper is placed appropriately as shown in the images below

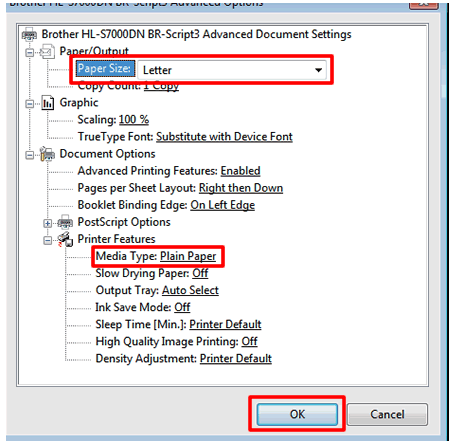

For Windows® printer driver

Step 1: Open Printing Preferences.

Step 2: Click the Basic tab.

Step 3: Choose the appropriate paper size in the Paper Size.

Step 4: Choose the appropriate paper type in the Media Type.

Step 5: Click OK.

Extra Information

For further assistance contact our customer support on 01-2777247 or send an email to [email protected]
